100V line PA ceiling speaker via audio transformer with power taps
Code: MZMEDL620
£38.08
(£31.73
ex VAT)
Quantity Pricing
2
-
4
£37.79
each
(£31.49
each ex VAT)
5
+
£37.51
each
(£31.26
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

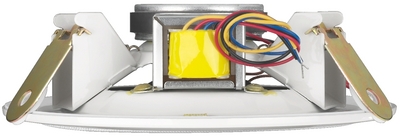

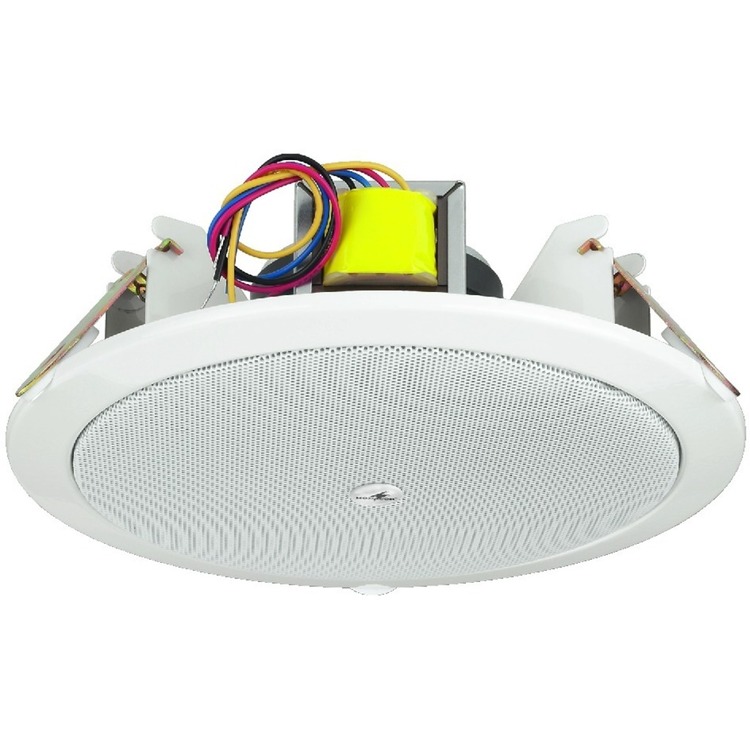

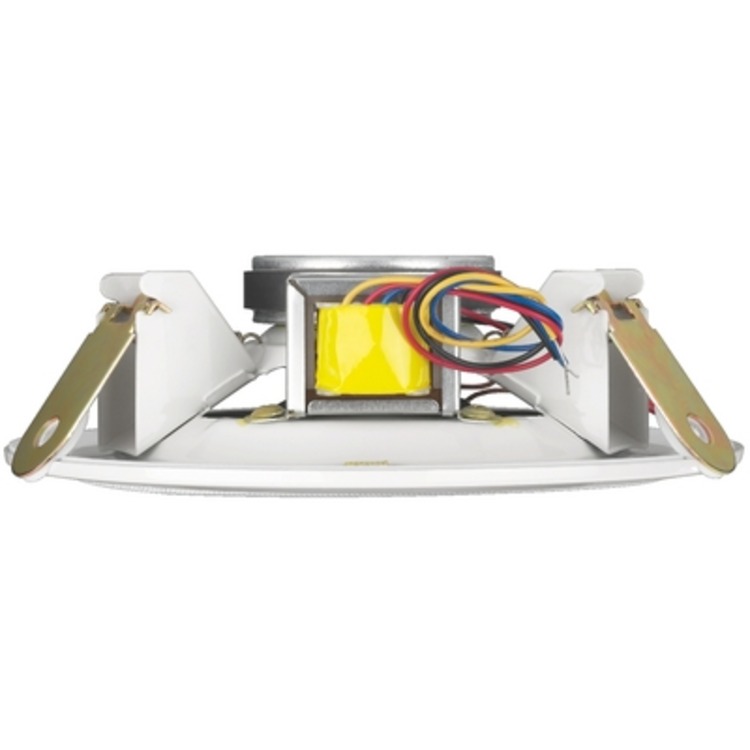

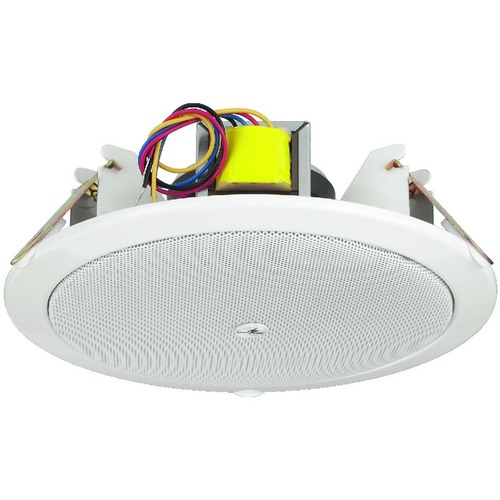

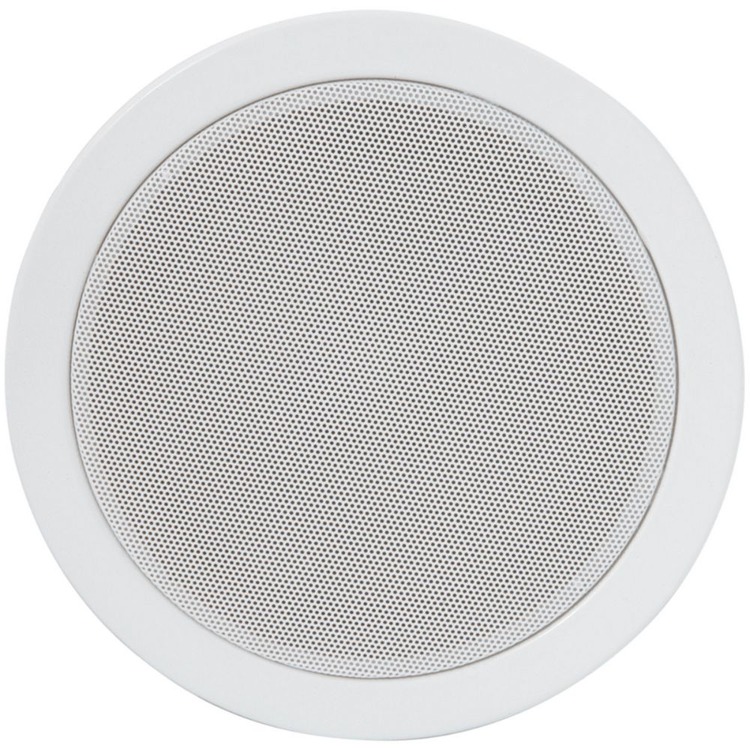

100V line white PA ceiling speaker via audio transformer with power taps and 20/10/5 WRMS power capability - 200mm diameter x 65mm height
- 100 V line technique via audio transformer with power taps
- Extra high maximum tapping power
- For a ceiling thickness from 5 to 22 mm
- Full range speaker, type 180
- Robust metal version (basket and protective grille)
MONACOR product code: EDL-620
Details
TECHNICAL DATA:
| Frequency range | 100-20,000 Hz |
| Power capability, 100 V | 20/10/5 WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | - |
| Max. rated SPL | - |
| Type of speaker | 180 |

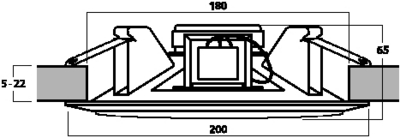

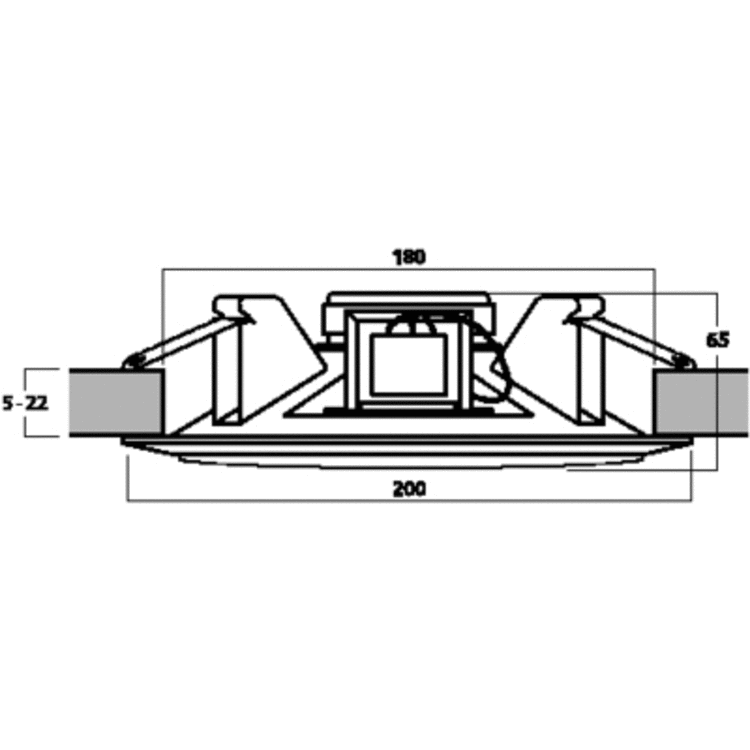

| Mounting cutout | diameter 180 mm |
| Mounting depth | 65 mm |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 200 mm diameter x 65 mm height |
| Weight | 900 g |
| Other features | - |
