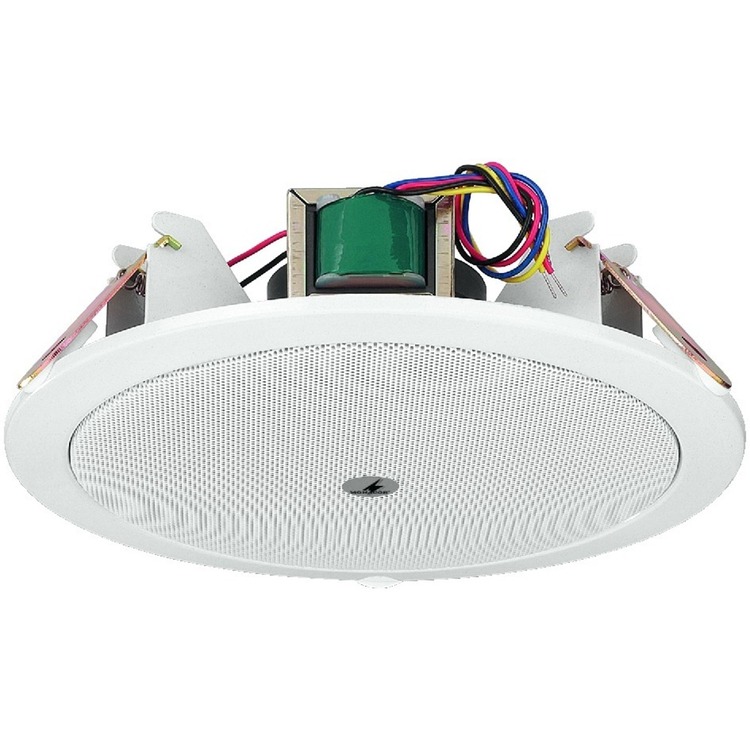

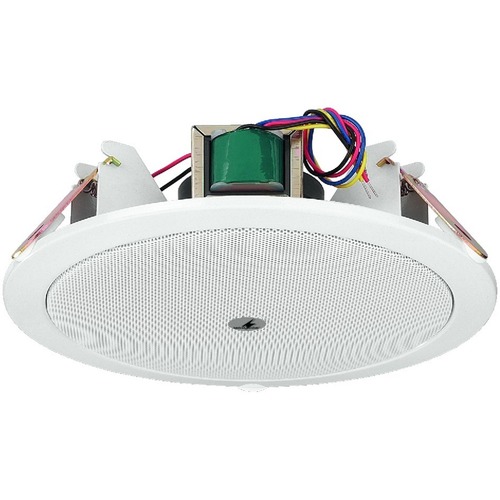

100V line PA ceiling speaker via audio transformer with power taps
Code: MZMEDL612
£37.26
(£31.05
ex VAT)
Quantity Pricing
2
-
4
£36.98
each
(£30.82
each ex VAT)
5
+
£36.71
each
(£30.59
each ex VAT)
Choose quantity
Order now for dispatch on Mon 22nd Dec.
Description

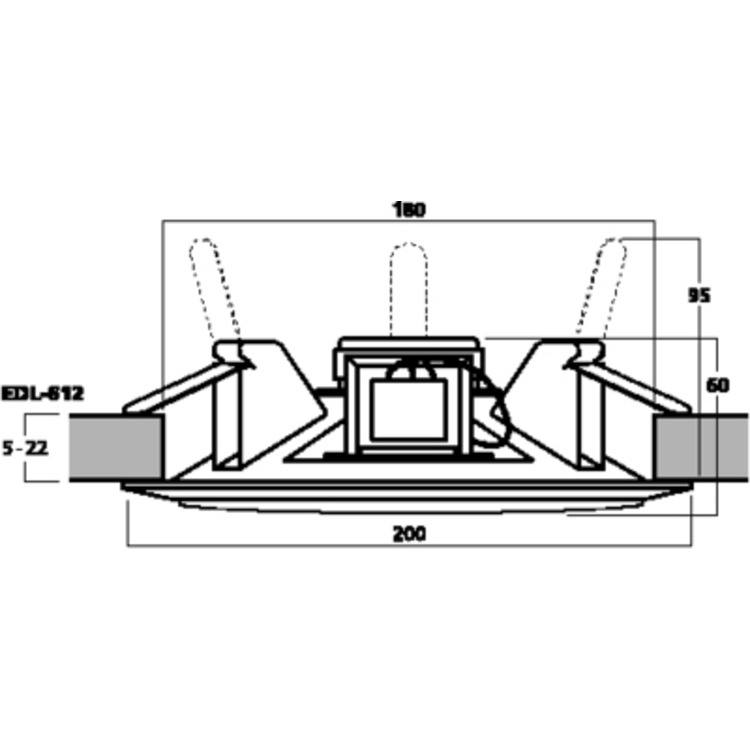

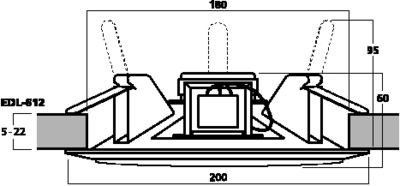

100V line white PA ceiling speaker via audio transformer with power taps and 12/6/3 WRMS power capability - 200mm diameter x 60mm height

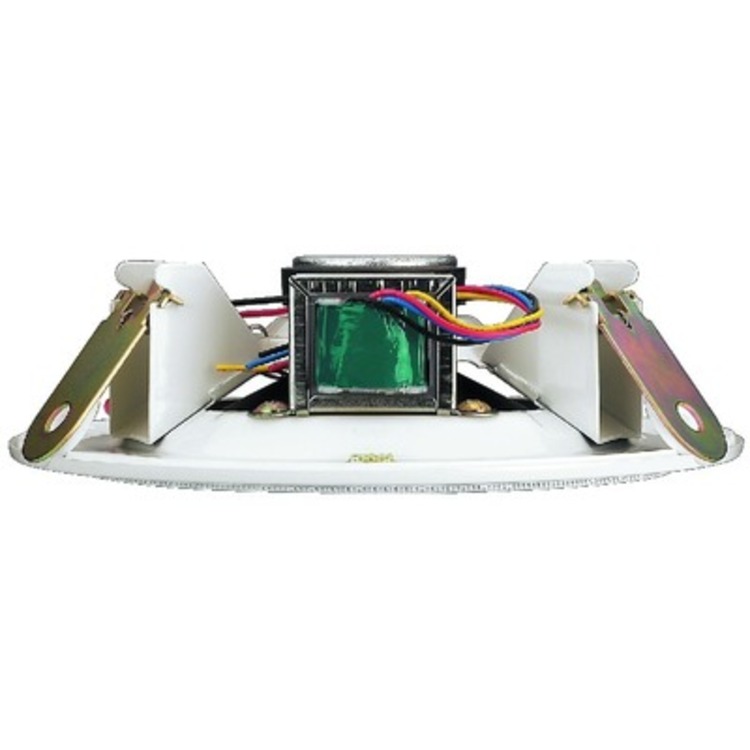

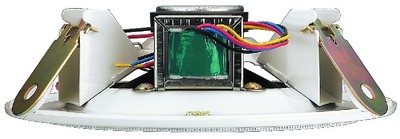

- 100 V line technique via audio transformer with power taps
- For a ceiling thickness from 5 to 22 mm
- Full range speaker, type 180
- A more powerful reproduction of the range of fundamental notes
- Robust metal version (basket and protective grill)
MONACOR product code: EDL-612
Details
TECHNICAL DATA:
| Frequency range | 100-20,000 Hz |
| Power capability, 100 V | 12/6/3 WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | - |
| Max. rated SPL | - |
| Type of speaker | 180 |
| Mounting cutout | diameter 180 mm |
| Mounting depth | 60 mm |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions |
200 mm diameter x 60 mm height |
| Weight | 750 g |
| Other features | - |
