100V line UL 94V0 PA ceiling speaker via audio transformer
Code: MZMEDL28
£72.90
(£60.75
ex VAT)
Quantity Pricing
2
-
4
£72.36
each
(£60.30
each ex VAT)
5
+
£71.82
each
(£59.85
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

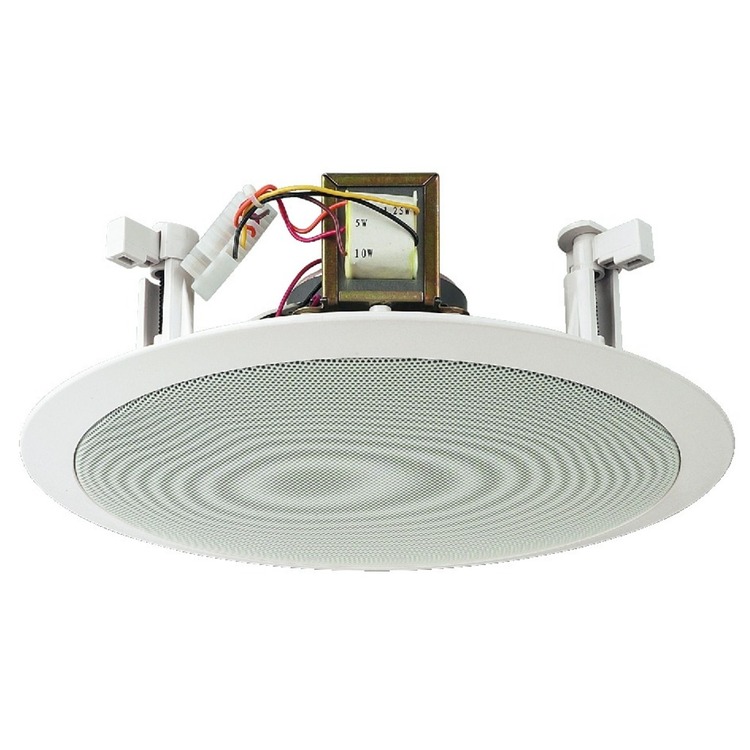

100V line PA ceiling speaker via audio transformer with power taps and UL 94V0 flammability rating - 275mm diameter

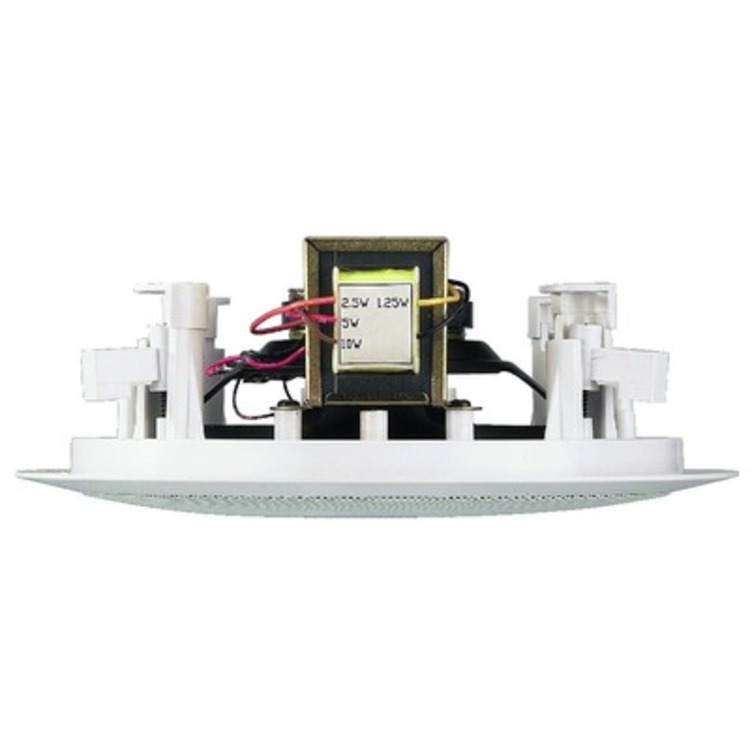

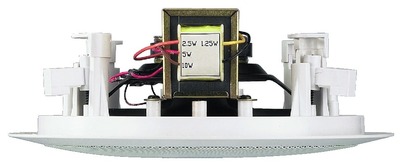

- 100 V line technique via audio transformer with power taps
- Full range speaker with dual cone

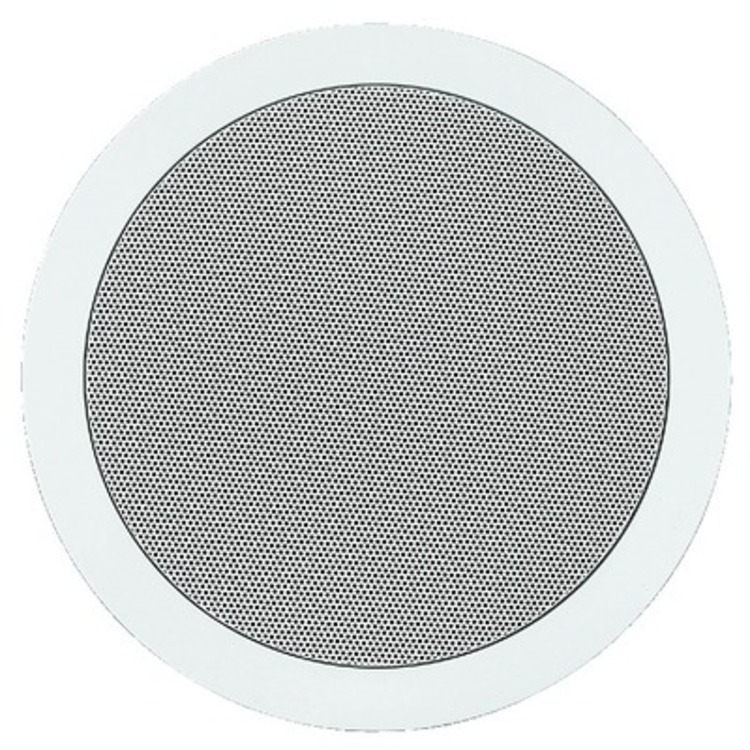

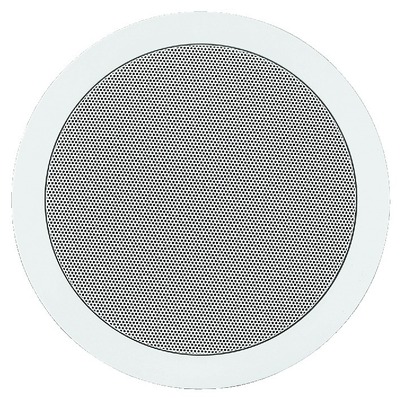

- Plastic housing with protective metal grille

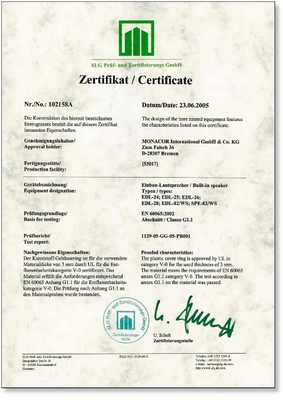

- Plastic material of ABS and self-extinguishing according to UL 94V0
- For a ceiling thickness from 10 to 40 mm
MONACOR product code: EDL-28
Details
TECHNICAL DATA:
| Frequency range | 60-14,000 Hz |
| Power capability, 100 V | 10/5/2.5/1.25 WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | 91 dB |
| Max. rated SPL | 100 dB |
| Type of speaker | 200 |

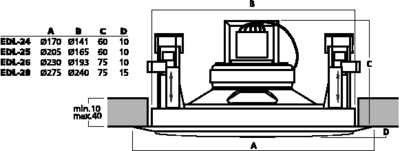

| Mounting cutout | diameter 240 mm |
| Mounting depth | 75 mm |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | diameter 275 mm x height 90 mm |
| Weight | 1.2 kg |
| Other features | - |
