100V line UL 94V0 PA ceiling speaker via audio transformer
Code: MZMEDL26
£51.84
(£43.20
ex VAT)
Quantity Pricing
2
-
4
£51.46
each
(£42.88
each ex VAT)
5
+
£51.07
each
(£42.56
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

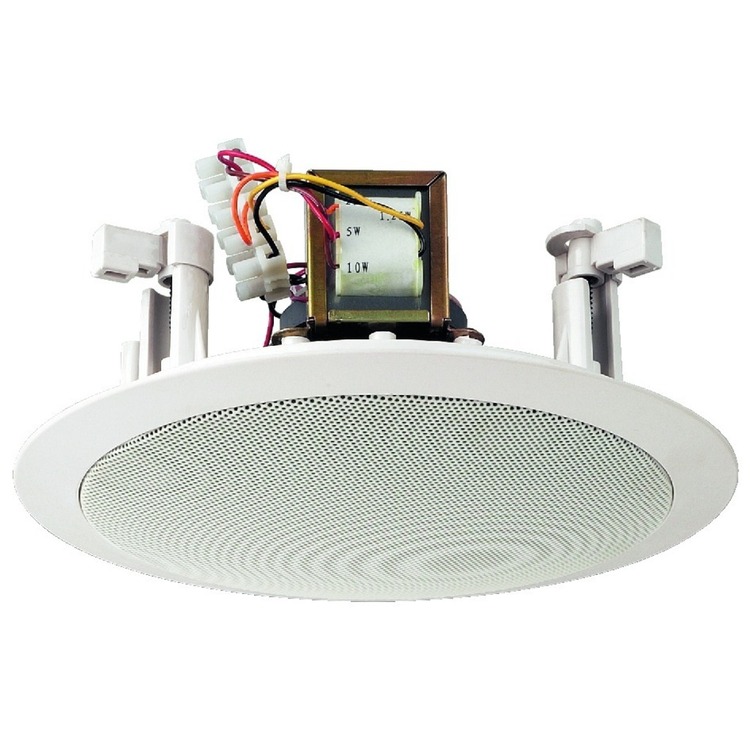

100V line via audio transformer with power taps white PA ceiling speaker with UL 94V0 flammability rating - 230mm diameter
- 100 V line technique via audio transformer with power taps
- Full range speaker with dual cone
- Plastic housing with protective metal grille

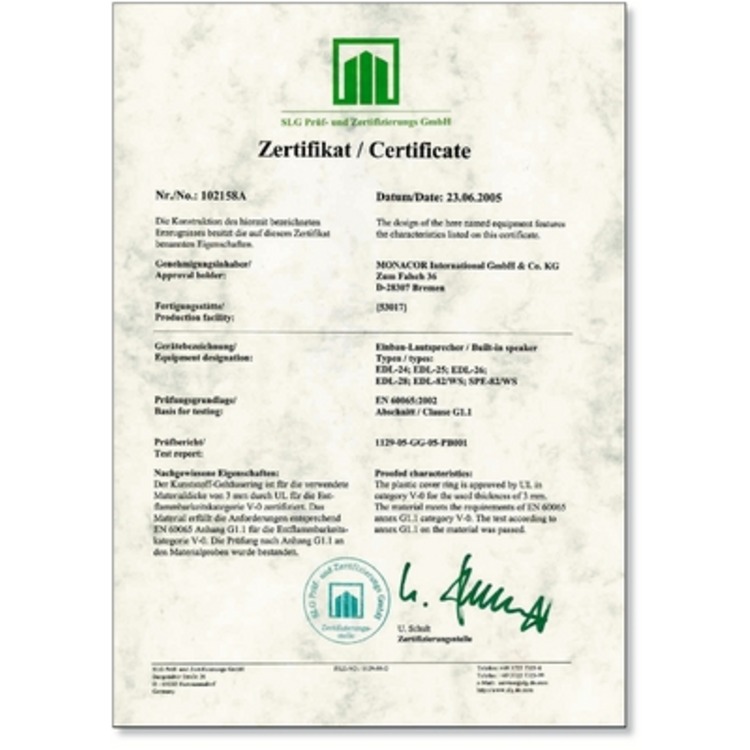

- Plastic material of ABS and self-extinguishing according to UL 94V0
- For a ceiling thickness from 10 to 40 mm
MONACOR product code: EDL-26
Details
TECHNICAL DATA:
| Frequency range | 80-14,000 Hz |
| Power capability, 100 V | 10/5/2.5/1.25 WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | 86 dB |
| Max. rated SPL | 95 dB |
| Type of speaker | 165 |

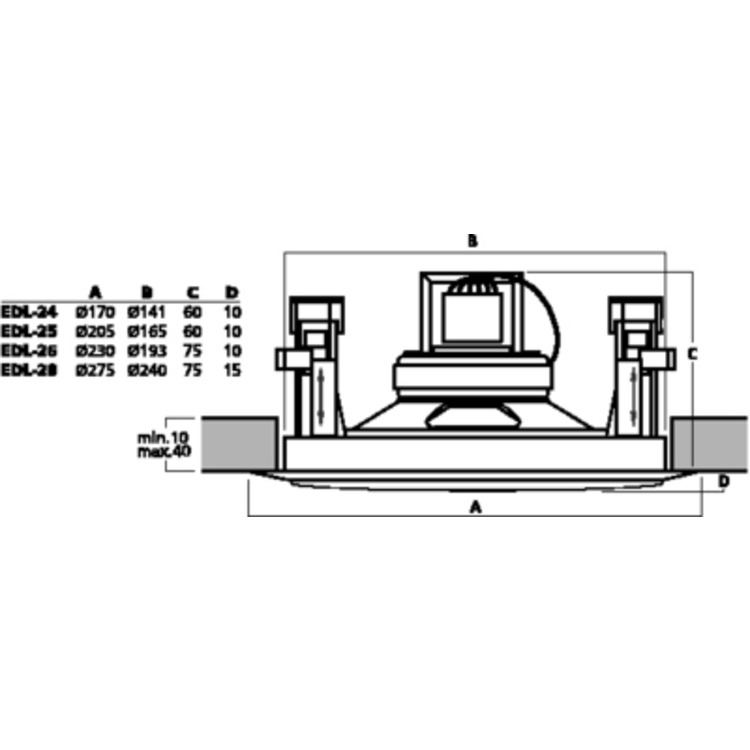

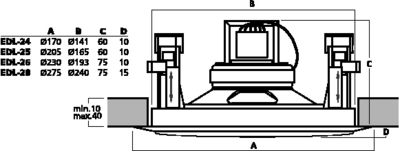

| Mounting cutout | 200 mm diameter |
| Mounting depth | 75 mm |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 230 mm diameter x 85 mm height |
| Weight | 910 g |
| Other features | - |
