100V line UL 94V0 PA ceiling speaker via audio transformer
Code: MZMEDL24
£28.73
(£23.94
ex VAT)
Quantity Pricing
2
-
4
£27.71
each
(£23.09
each ex VAT)
5
+
£27.29
each
(£22.74
each ex VAT)
Choose quantity
Order now for dispatch on Wed 7th Jan.
Description

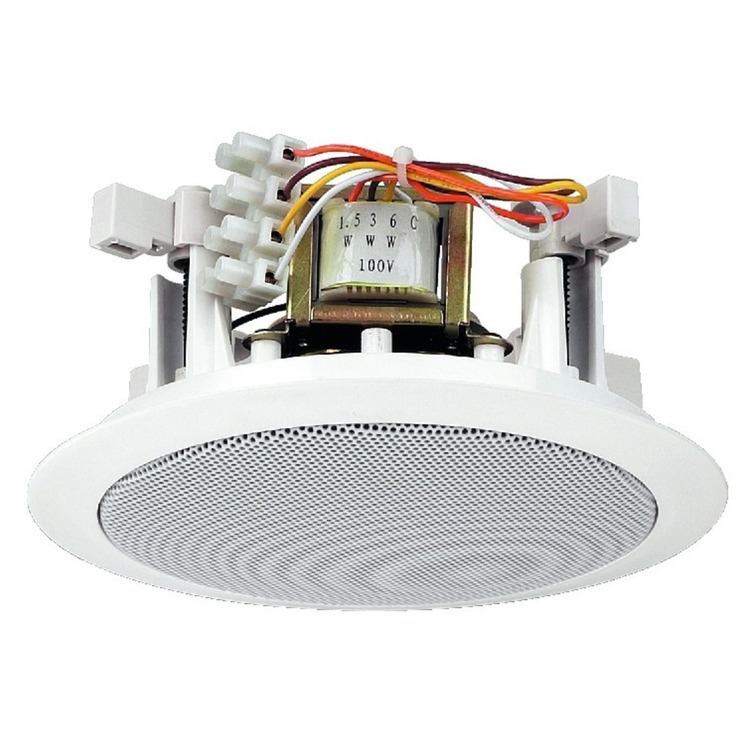

100V line PA ceiling speaker via audio transformer with power taps and UL 94V0 flammability rating - 170mm diameter
- 100 V line technique via audio transformer with power taps
- Full range speaker with dual cone
- Plastic housing with protective metal grille
- Plastic material of ABS and self-extinguishing according to UL 94V0
- For a ceiling thickness from 10 to 40 mm
MONACOR product code: EDL-24
Details
TECHNICAL DATA:
| Frequency range | 100-14,000 Hz |
| Power capability, 100 V | 6/3/1.5 WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | 87 dB |
| Max. rated SPL | 94 dB |
| Type of speaker | 100 |
| Mounting cutout | diameter 142 mm |
| Mounting depth | 60 mm |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | diameter 170 mm x height 70 mm |
| Weight | 750 g |
