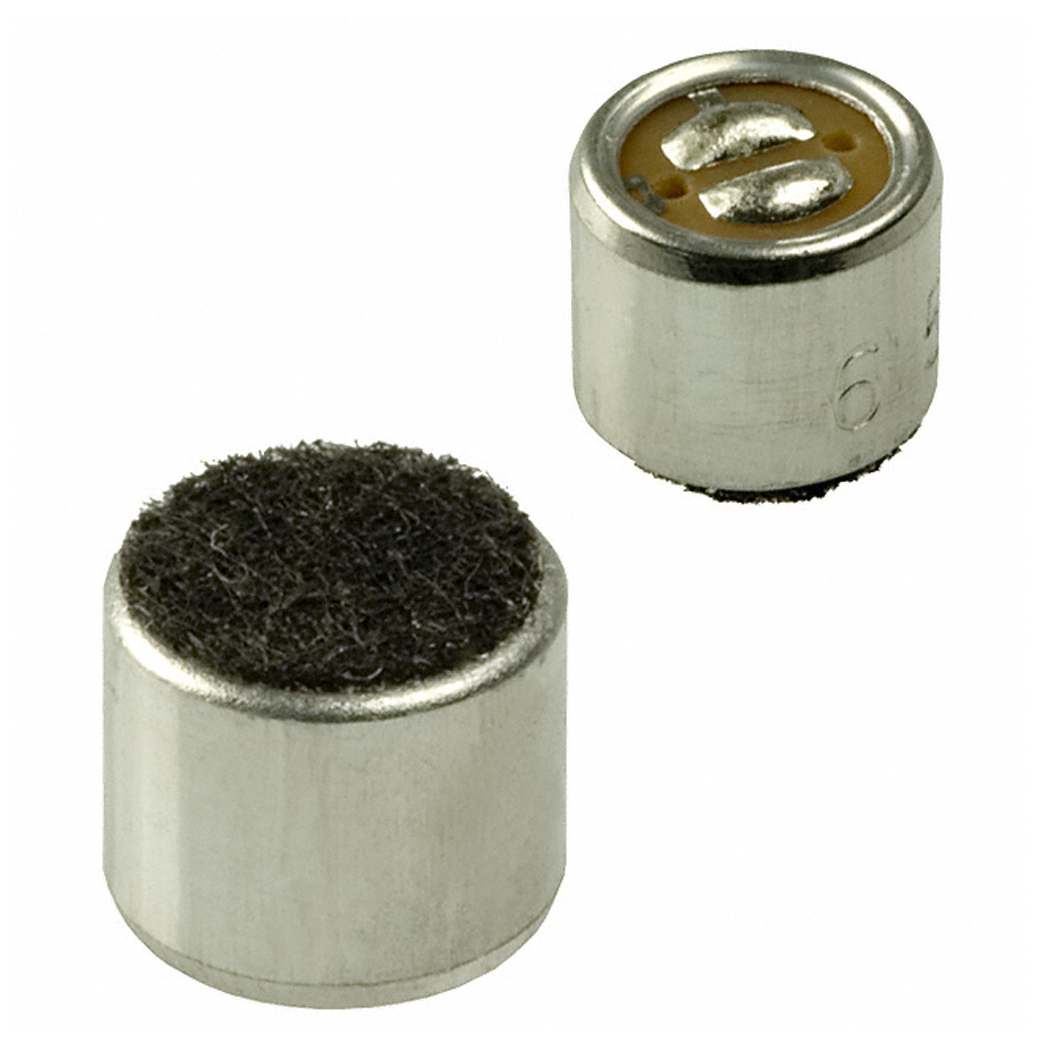

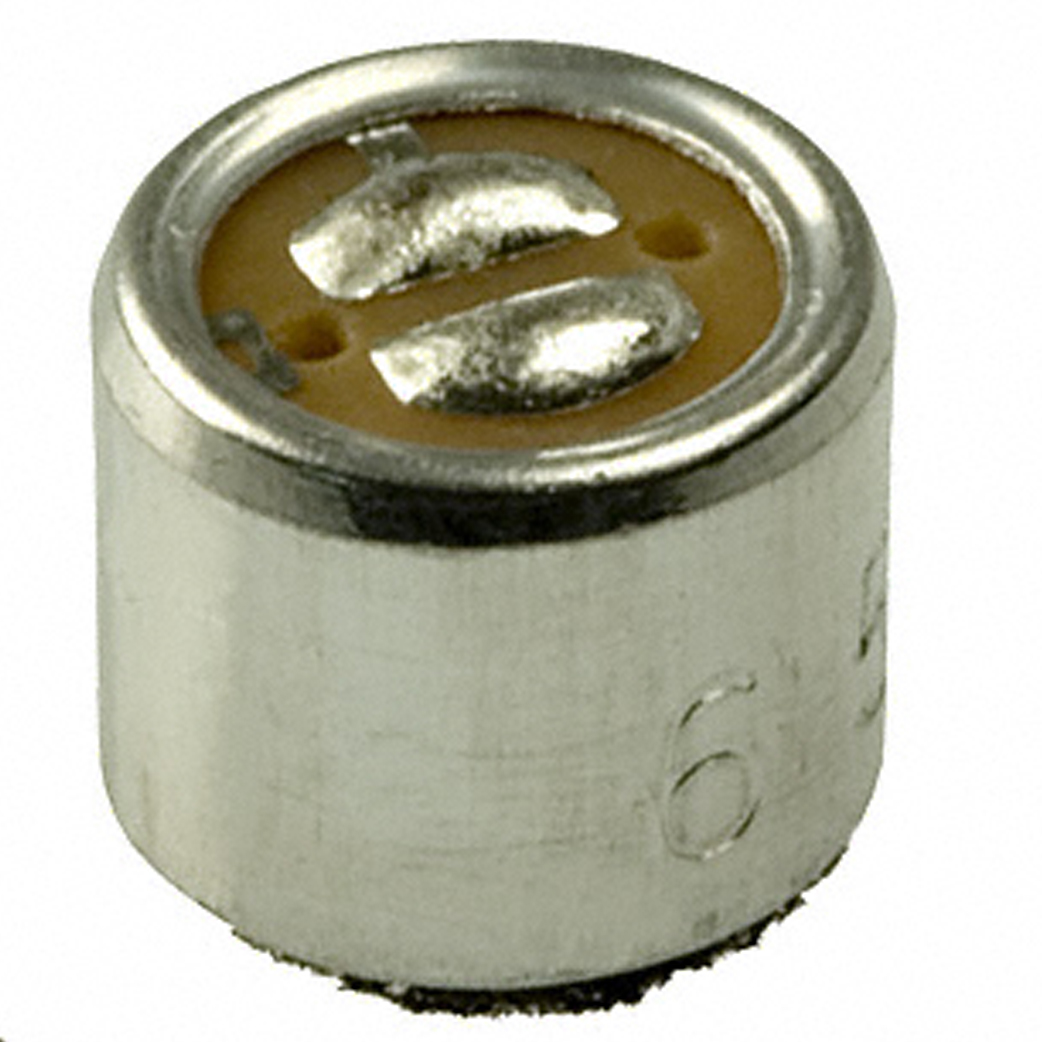

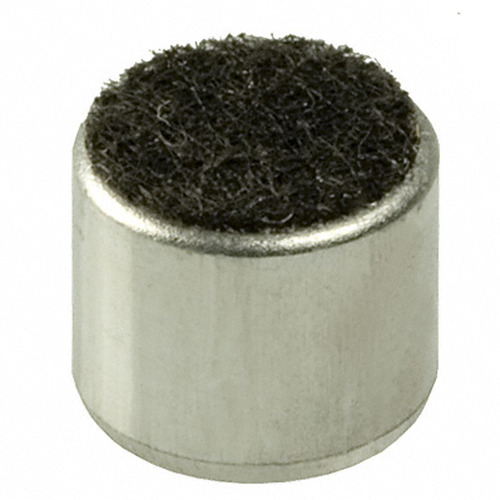

WM-65A103 Panasonic Electret Condenser Microphone Capsule
Code: MWM65A103
£1.20
was
£3.12
(£1.00
ex VAT)
Quantity Pricing
1000
+
£0.78
each
(£0.65
each ex VAT)
-
VAT
These are surplus production stock - max 5000 available
Choose quantity
Order now for dispatch today.
Description
WM-65A103 Panasonic Electret Condenser Microphone Capsule; 100 Hz ~ 12 kHz Analog Microphone Electret Condenser capsule 2 V ~ 10 V Unidirectional (-50dB ±4dB @ 94dB SPL) Solder Pads
|
Manufacturer
|
Panasonic
Electronic Components
|
|
|
Series
|
|
|
|
Packaging
|
Bulk
|
|
Part
Status
|
Obsolete
|
|
|
Type
|
Electret
Condenser
|
|
|
Output
Type
|
Analog
|
|
|
Direction
|
Unidirectional
|
|
|
Frequency
Range
|
100 Hz ~ 12
kHz
|
|
|
Sensitivity
|
-50dB ±4dB @ 94dB
SPL
|
|
|
S/N Ratio
|
55dB
|
|
|
Impedance
|
2.2 kOhms
|
|
|
Voltage -
Rated
|
2 V
|
|
|
Voltage
Range
|
2 V ~ 10 V
|
|
|
Current -
Supply
|
500 µA
|
|
|
Port
Location
|
Top
|
|
|
Termination
|
Solder Pads
|
|
|
Size /
Dimension
|
0.236" Dia
(6.00mm)
|
|
|
Height
(Max)
|
0.197"
(5.00mm)
|
|
|
Shape
|
Circular
|
|
|
Base Product
Number
|
