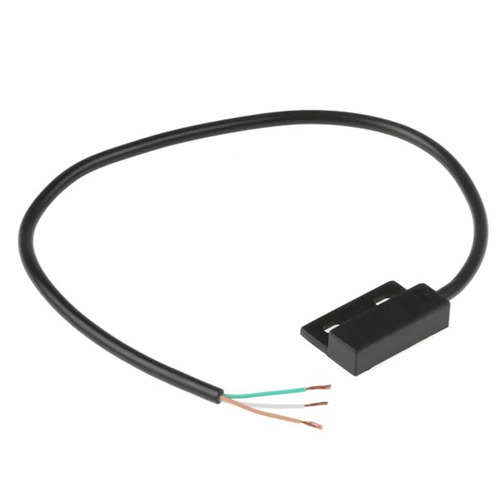

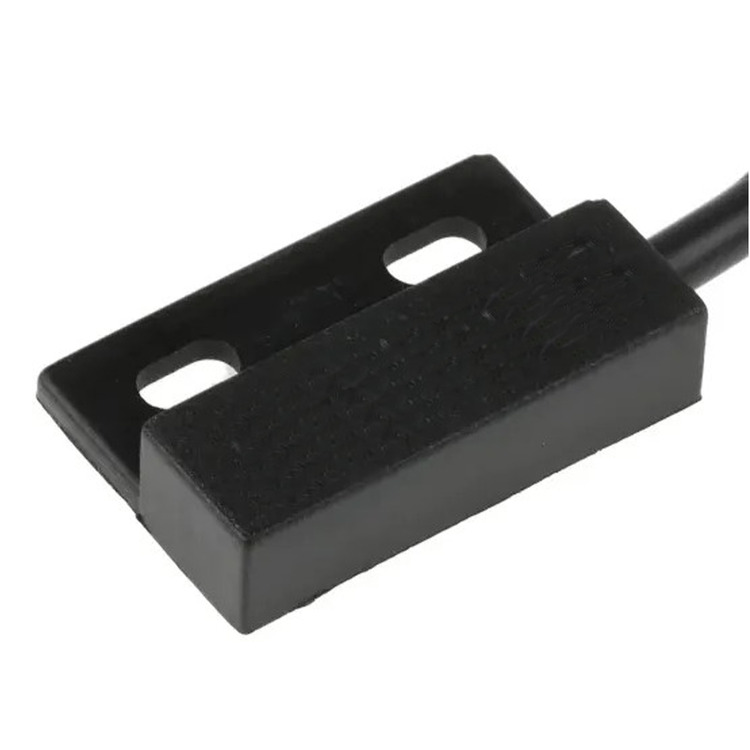

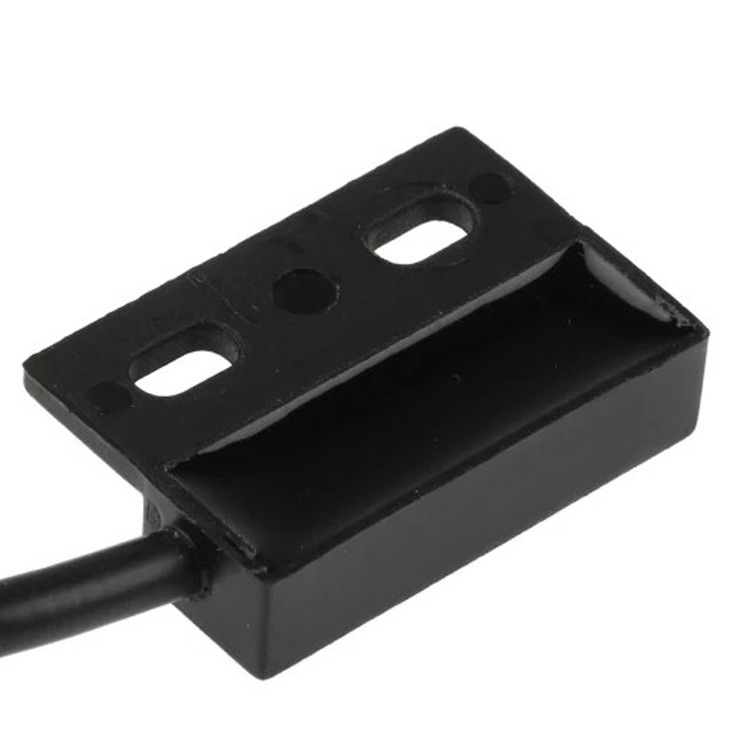

Rectangular
Moulded in black polypropylene
Cable length: 300mm

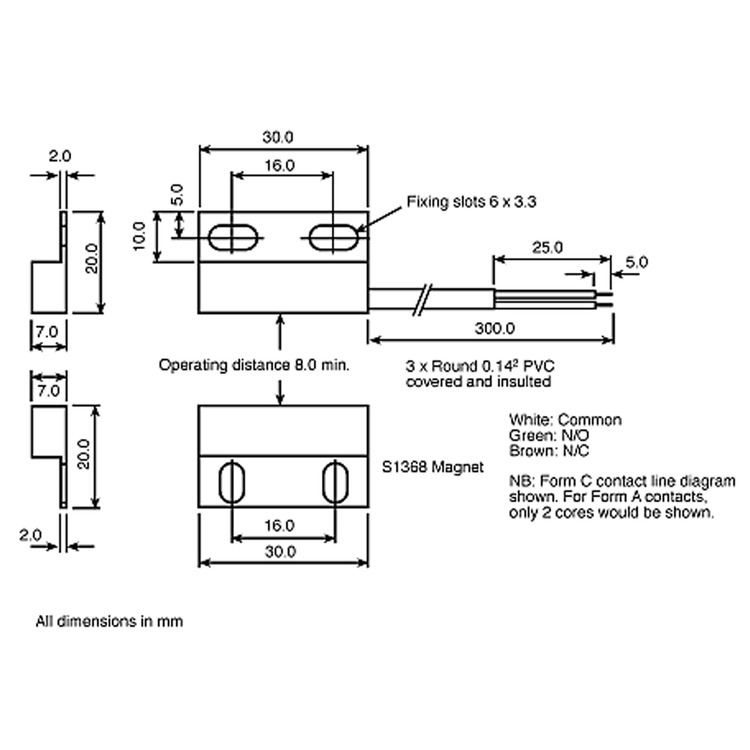

Dimensions: 30 x 20 x 7mm
Contacts: NO/NC
Note: Actuator magnet must be ordered separately, see Stock No: S0REEDMAG
Switch Shape | Rectangular |
Normal State Configuration | NO/NC |
Terminal Type | Wire Lead |
Maximum Current | 250mA |
Maximum AC Voltage | 100V |
Contact Resistance | 150m? |
Total Length | 330mm |
Length | 30mm |
Dimensions | 30 x 20 x 7mm |
Width | 20mm |
Depth | 7mm |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -20°C |
Manufacturer product code: S1367
These are surplus production stock originally ordered from RS Components under code 289-7806
