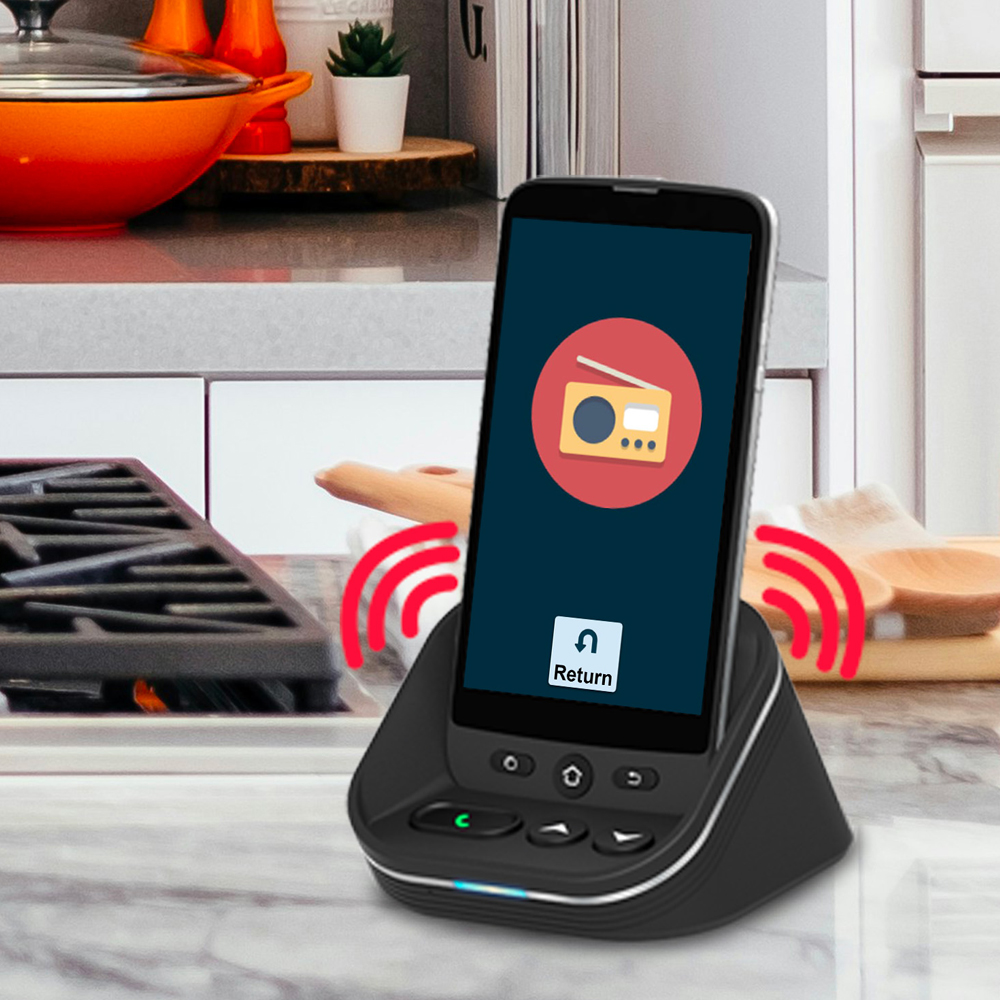

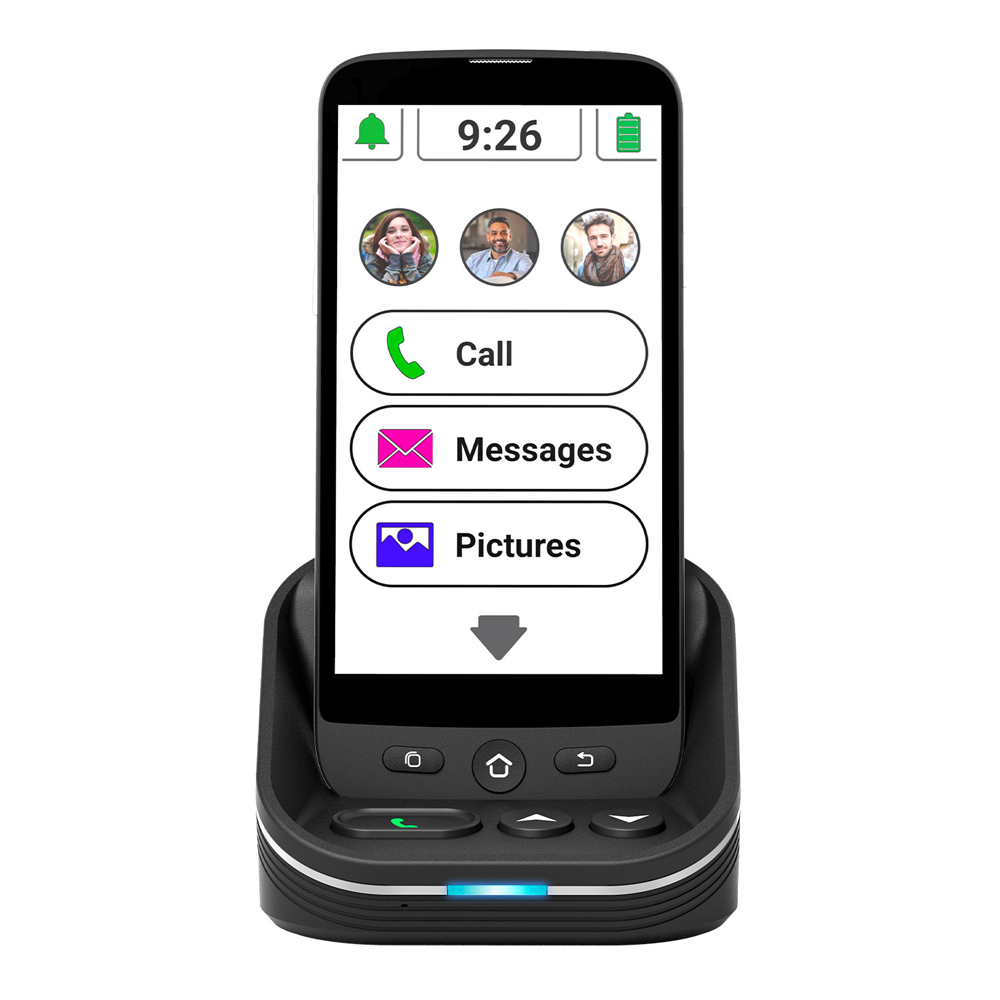

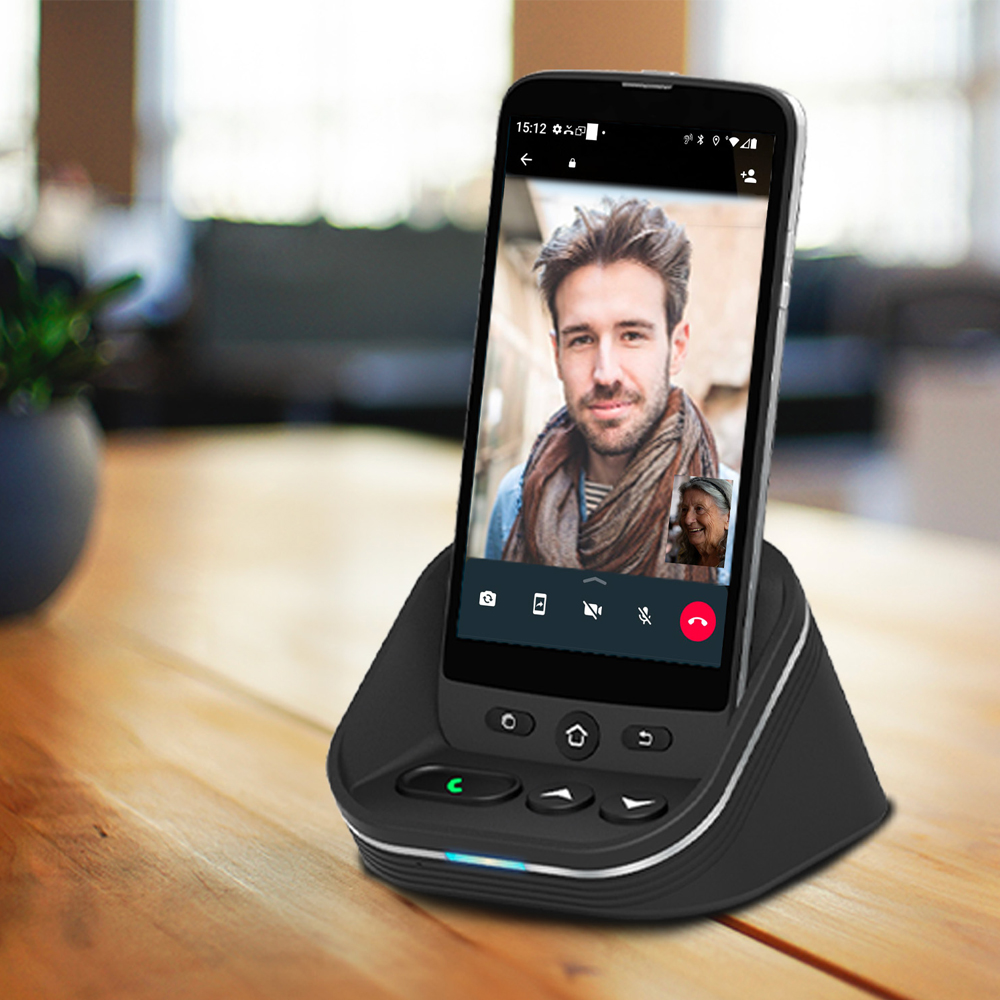

Swissvoice Amplibase - Bluetooth Amplified Charging Base for S510C & S510M.

The ideal accessory to make the most of your Smartphone at home with extra amplified extra sound and easy charging. You can put the phone onto the Amplibase during a call and the Bluetooth connection will activate automatically and the sound will be played through the base. Similarly if you remove the phone from the base during a call, the sound will switch back to the phone.
(note - smartphone purchased separately!)

Please note that the magnetic dongle as supplied with the S510M will need to be removed to use the smartphone with the Amplibase.

Features:

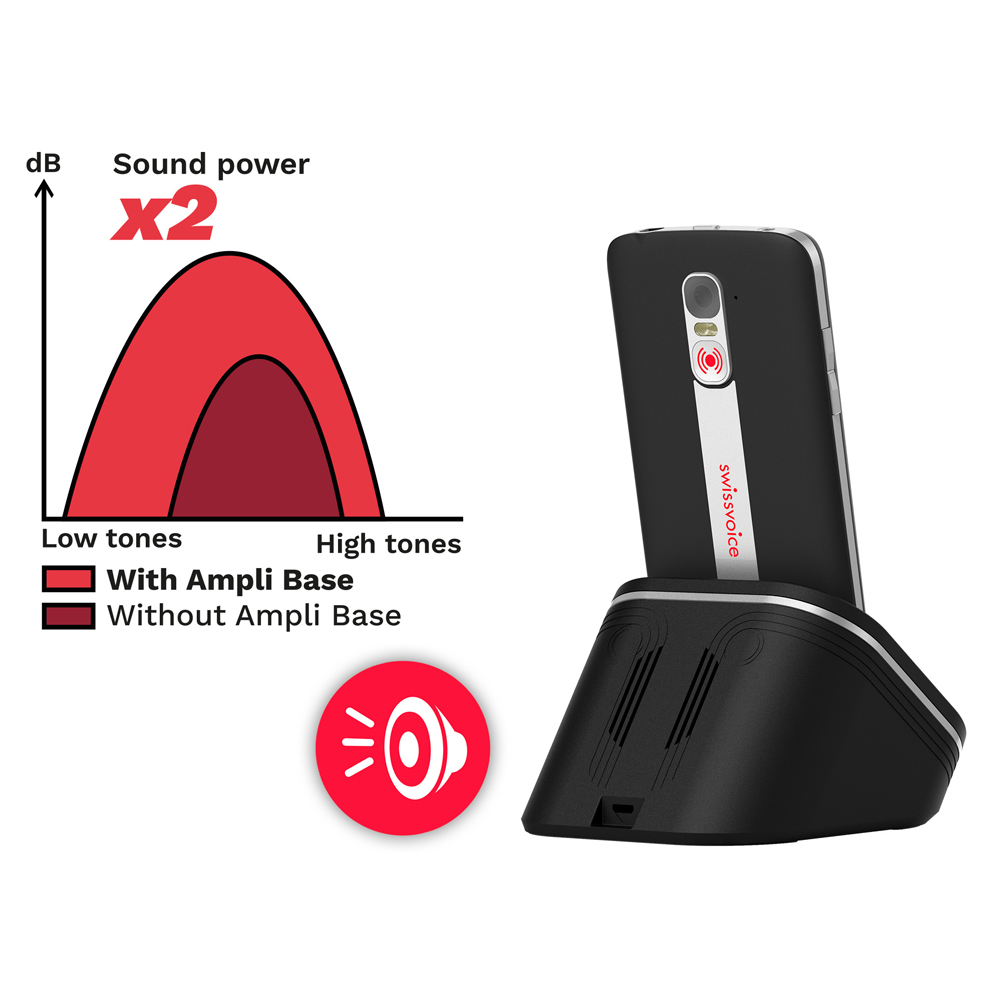

• Bluetooth speaker with amplified sound and enhanced low frequency response - twice as loud as the smartphone handsfree volume level with better bass and treble
• External full duplex handsfree system for Swissvoice S510C/S510M smartphones

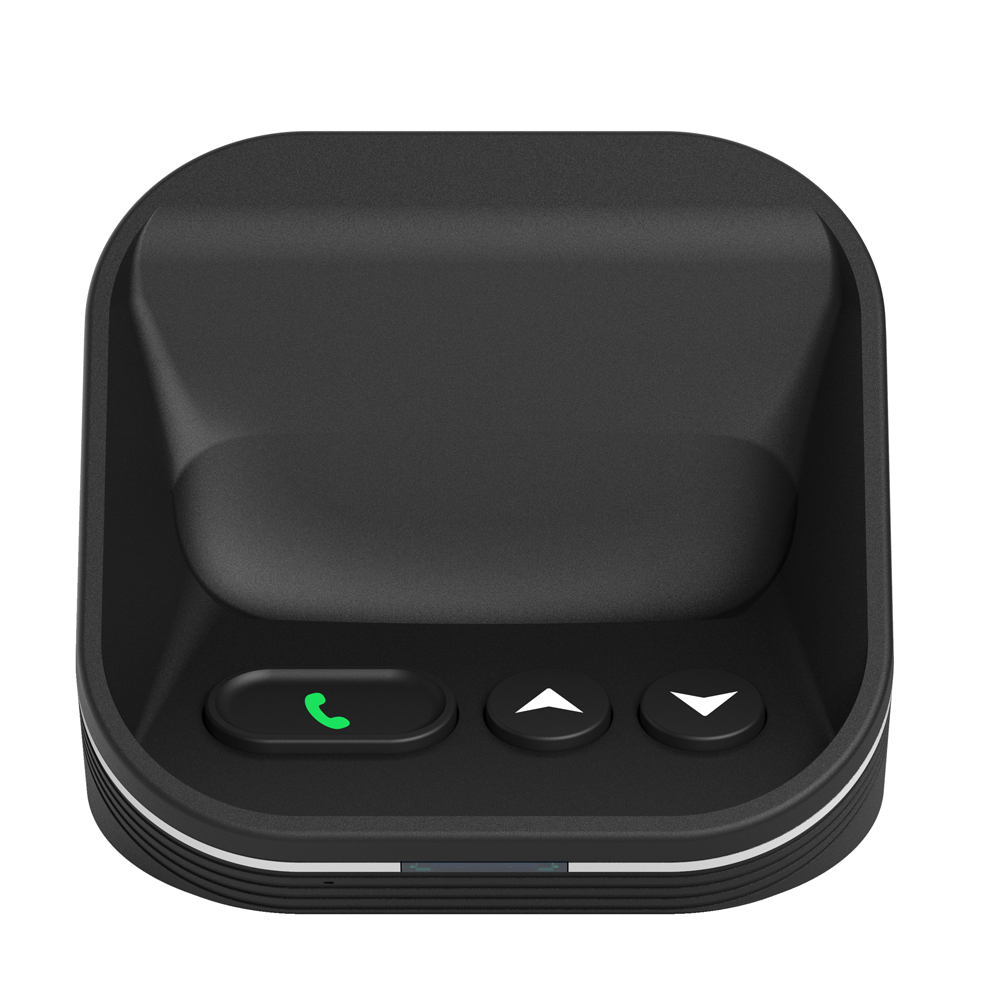

• Answer/release mobile calls and control call or media volume with its physical keys - no need to pick up the phone or touch the screen
• Automatic Bluetooth connection/disconnection when the smartphone is placed on/removed from the base, including audio handover between phone and base
• Easy charging station

 Supplied with Amplibase, USB cable, UK power adaptor and instructions.

Technical Specification

• USB cable: Type A to Micro-B, 1.8m
• USB Power Adapter (EU or UK): 5V/1A type A output
• Bluetooth Support: BT Version 5.0
• Bluetooth Profiles: A2DP/HFP/HSP
• Chipset: ANYKA AK1056D
• Speaker Sound Level: up to 88dBA at 50cm
• LED: 4 colors White/Blue/Red/Green
• Dual microphone
• No battery
• Working voltage: 5V
• Charging contacts: 2
• MAX output power (NTP): -4dBm
• Frequency range: 2.4 ~ 2.4835 GHz
• Dimensions: 110 x 90 x 60 mm
• Weight: 195g

Click here to view PDF data sheet

Click here to view PDF user guide
