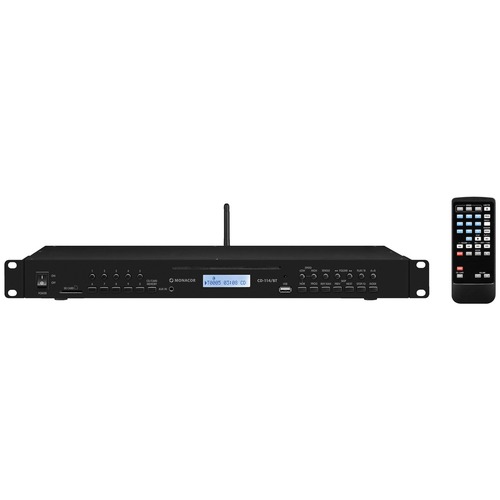

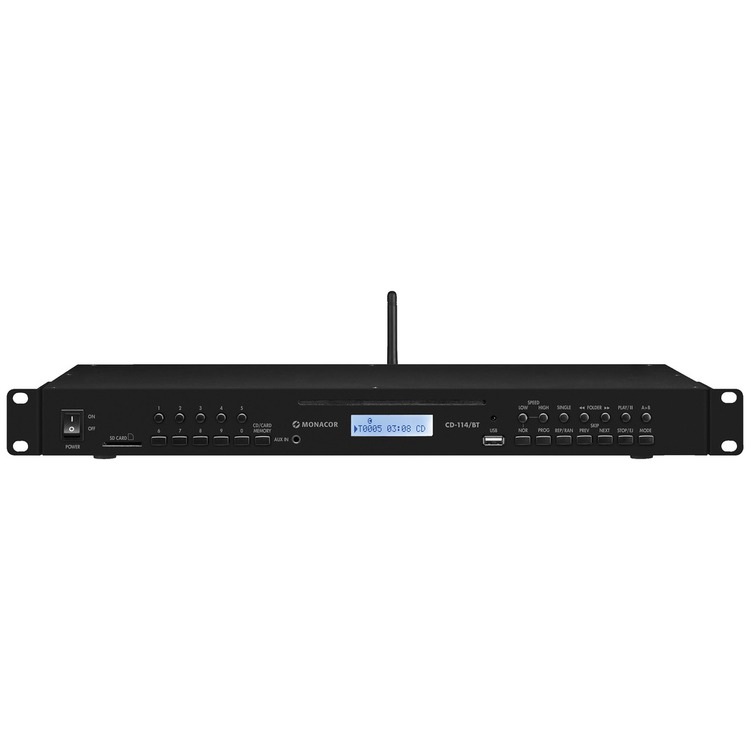

CD and MP3 player, with Bluetooth receiver, USB port and SD card
slot.
SPECIFICATIONS
* Bluetooth receiver for wireless connection of laptops,
smartphones or tablet PCs
* USB storage media can be connected directly
* For SD cards (SD/SDHC/SDXC) up to 128 GB (FAT16/FAT32), not
included in the scope of delivery
* Anti-shock system
* Supports ID3 tags
* Autoplay function
* Pitch control function for CD, SD and USB
* Fast forward and rewind
* Track programming, 10 tracks possible
* Repeat function (repeat 1, repeat all, repeat folder)
* Hot key feature
* Supplied with infrared remote control
* Aux input, 3.5 mm stereo jack
* RS-232 interface
* 230 V mains connection and additional 24 V connection
* 482 mm (19") rack installation, 1 RU
* Audio CD/CD-R/CD-RW/MP3 CD, MP3/WMA/CDDA
Monacor product code: CD-114/BT
Technical specifications CD-114/BT
| CD-114/BT |
| Description |
CD and MP3 player |
| Media |
CD, MP3, USB, SD |
| Frequency range |
20-20,000 Hz |
| THD |
0.3% |
| Channel separation |
60 dB |
| S/N ratio |
60 dB |
| Output, analogue |
0.8 V |
| Power supply |
˜
230 V/50 Hz/30 VA |
| Mains voltage |
~ 230 V |
| Mains frequency |
50 Hz |
| Power consumption, operation |
30 VA |
| Power consumption, standby |
9.2 VA |
| Operating voltage (possible
alternative) |
24 V |
| Admiss. ambient temp. |
0-40 °C |
| Dimensions |
482 x 44 x 245 mm, 1 RU |
| Weight |
3.27 kg |

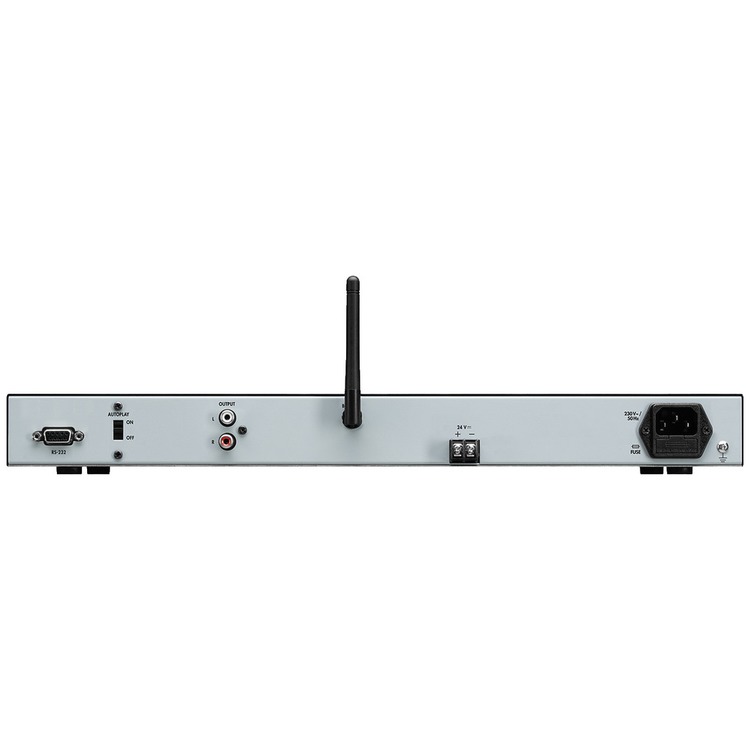

| Connections |
1 x RCA L/R
1 x 3.5 mm stereo jack
1 x RS-232
|
| Packing dimensions (W x H x L) |
0.325 x 0.125 x 0.598 m |
| Gross weight |
4.23 kg |
