Wall bracket for PA speaker systems - 35mm top hat
Code: MZMPAST88SW
Quantity Pricing
-
VAT
Out of Stock
Please enter your email address below and we will notify you once this item is back in stock.
Description

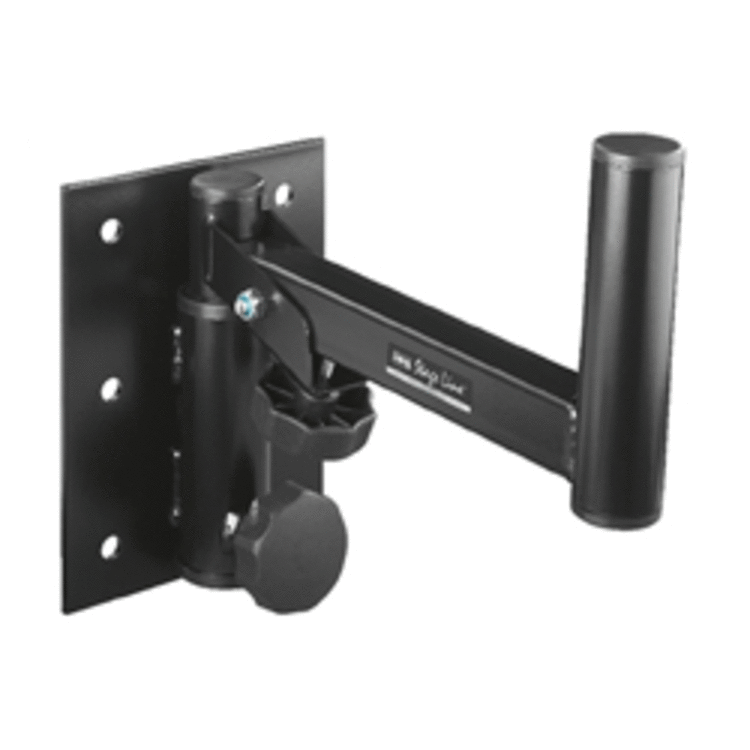

Speaker wall bracket
Black lacquered, movable (approx. 150°) and tiltable (approx. 20°), to be locked with setscrews.
Fixing bolt for accepting e.g. PA speaker systems with stand insert as well as carrier plates and adapter plates.

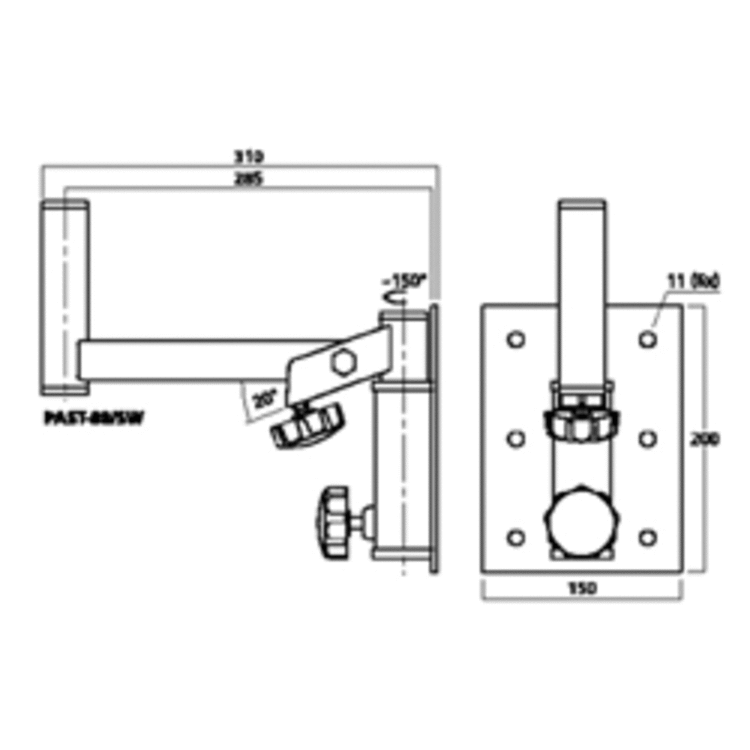

Distance between fixing bolt and mounting plate: 285mm, total length: 310mm.
Maximum load capacity: 20kg.
35mm top hat.
Safety Note
To be installed by experts only. Pay attention to precise screw
connection. Please use suitable safety chains.
Monacor [product code: PAST-88/SW 11.1270
Details
Safety Note
To be installed by experts only! Pay attention to precise screw
connection! Please use suitable safety ropes!
| TECHNICAL DATA: | |
| Intended use | wall bracket |
| Features | mandrel |
| Material | metal |
| Colour | black |
| Max. load/centr. weight concentr. | 20 kg |
| Mounting plate | 150 x 200 mm |
| Length | 310 mm |
| Weight | 2.024 kg |
| Special feature | pivoting and tilting |
