Monacor TXA-1022CD 120W Portable PA System With Bluetooth and CD

Solutions to improve the quality of life

Home

A delivery discount of £9.54 (inc VAT) will be applied when this product is purchased online

Monacor TXA-1022CD 120W Portable PA System With Bluetooth and CD

Code: MZMTXA1022CD

Write a review

£1,402.15 (£1,168.46 ex VAT)

Quantity Pricing

2 +

£1,380.07 each (£1,150.06 each ex VAT)

Choose quantity

Order now for dispatch on Wed 29th Jan.

Description

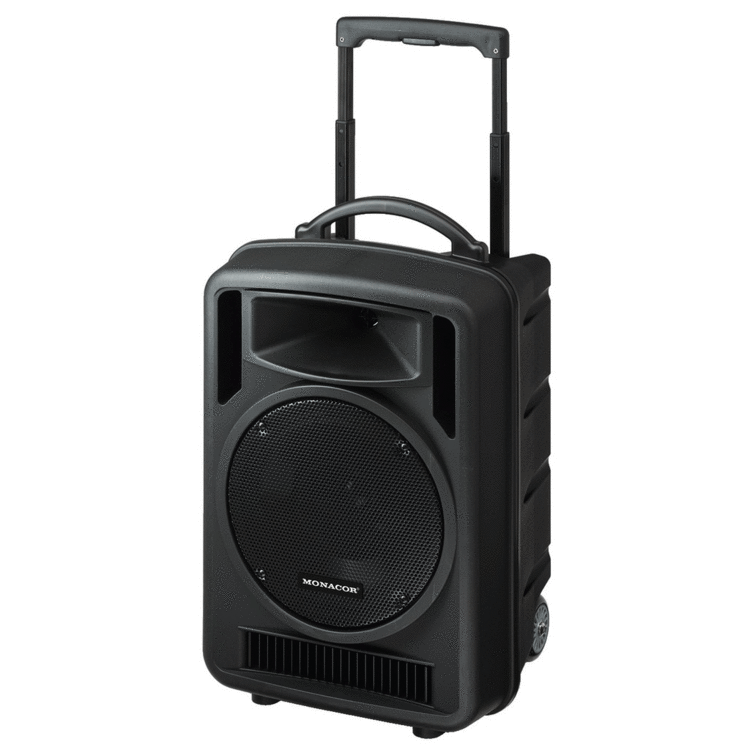

Monacor TXA-1022CD Portable high-power amplifier systems with integrated 2-channel UHF multifrequency receiver and Bluetooth receiver.

Amplifier system with 2-channel wireless receiver
CD player with anti-shock system, MP3 reproduction and slot-in mechanism, pitch control function
SD card reader, USB interface
1 wireless transmitter for wireless audio link operation of several TXA-1020 systems
Supplied with remote control for CD player
High-performance class D version 120 W, with optimum efficiency
Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
For mobile applications, e.g. sales events, lectures
2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
2-way speaker system of high power capability with a 25 cm (10") bass speaker

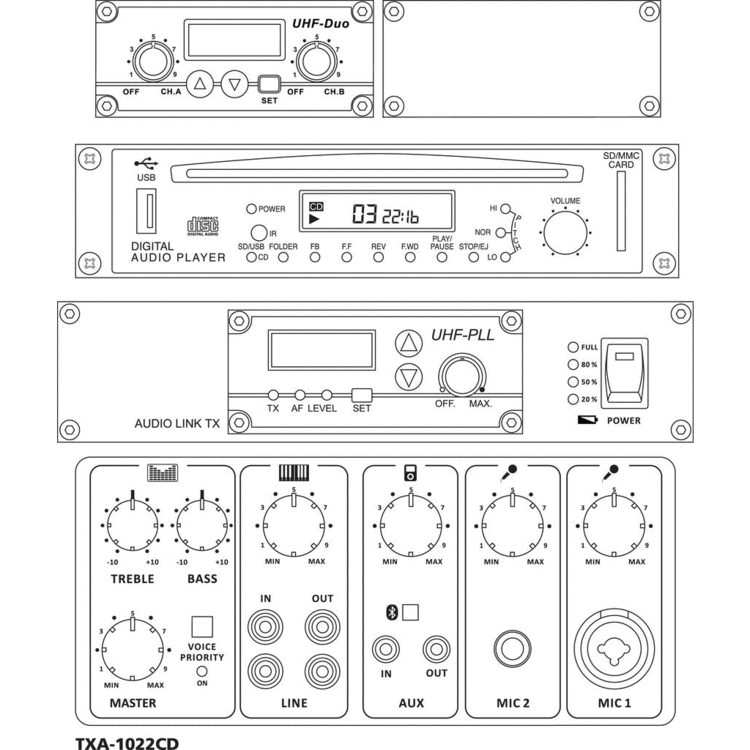

1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
Common master control, 2-way tone control
1 stereo line output (RCA), 1 aux output (3.5 mm jack)
Switchable microphone priority circuit
Using its extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
Speaker stand sleeve

Please note that radio microphone transmitters are not included and need to be ordered separately as required.

Licence-free in the EU.
Matching microphone transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT or the multi-frequency transmitter module TXA-1020MT are available as optional accessories.

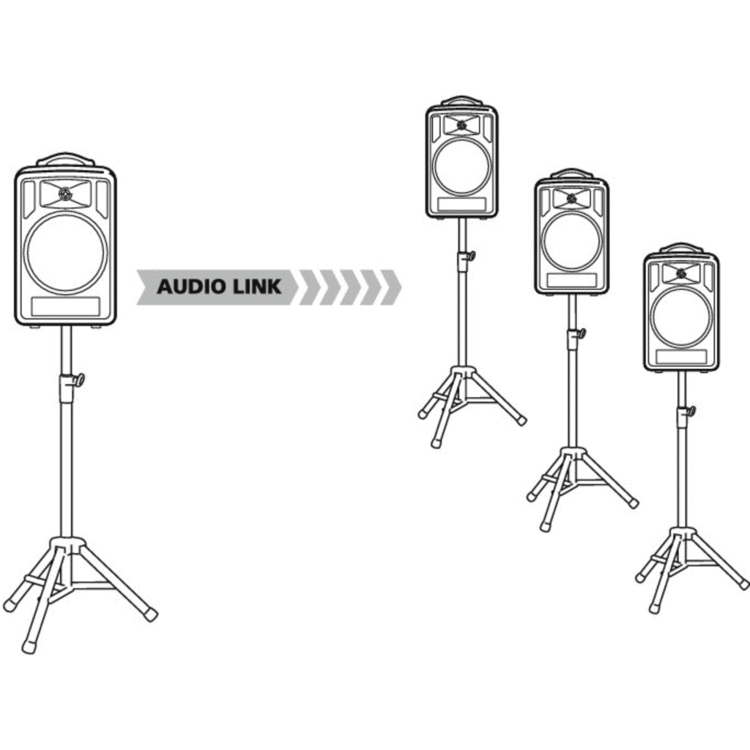

Audio link operation:
The integrated wireless transmitter of the TXA-1022CD transmits audio signals to one or several TXA-1020 systems. Ideally suited for larger indoor PA applications where a consistent sound radiation is required.

MONACOR product code: TXA-1022CD

Details

Output power	170 W _MAX/120 W _RMS
Frequency range	20-20,000 Hz
Carrier frequency	863.1-864.9 MHz
Operating range	approx. 30 m
Sensitivities
Mic inputs	6 mV
Line inputs	300 mV (incl. aux)
Link	wireless
Equalizer, bass	±10 dB/100 Hz
Equalizer, midrange	-
Equalizer, treble	±10 dB/10 kHz
Power supply	230 V˜/50 Hz/170 VA, rech. battery: 2 x 12 V/4.5 Ah
Admiss. ambient temp.	0-40 °C
Dimensions	360x580x320 mm
Weight	19.2 kg
